Economy Visible Beamsplitters

Designed for use with Unpolarized Light in the 450 - 650 nm Range
Optimized to Provide a 50:50 or 30:70 Split Where Polarization
Sensitivity is Not a Consideration

EBP1

(Ø1")

EBP2

(Ø2")

Related Items

Beamsplitters

Fixed Optic Mounts

Optic Spacer Rings

Power and Energy Meters

Detectors

Mirrors

Please Wait

Overview
Specs
Graphs
BS Selection Guide
Feedback

Common Specifications
Substrate Material	Soda Lime Glass
Coating (One Side)	Refractory Oxide Dielectric
Thickness (Nominal)	1 mm
Surface Quality	80-50 Scratch-Dig as per MIL-013830A
Clear Aperture	>90% of Diameter
Temperature Range	-50 to 80 °C

Click to Enlarge

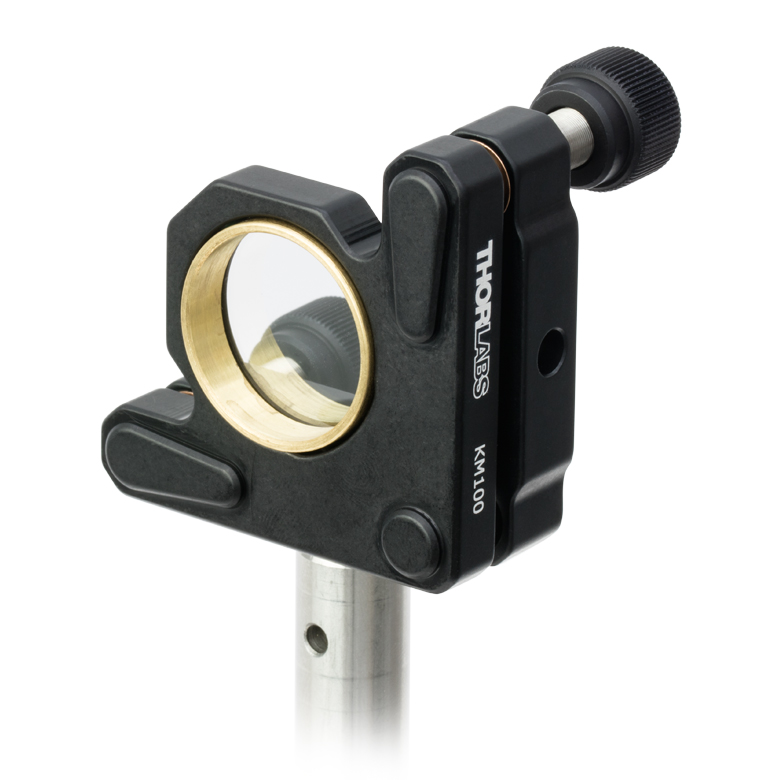

EBP1 economy beamsplitter mounted in a KM100 mirror mount using an SM1S6M 6 mm optic spacer.

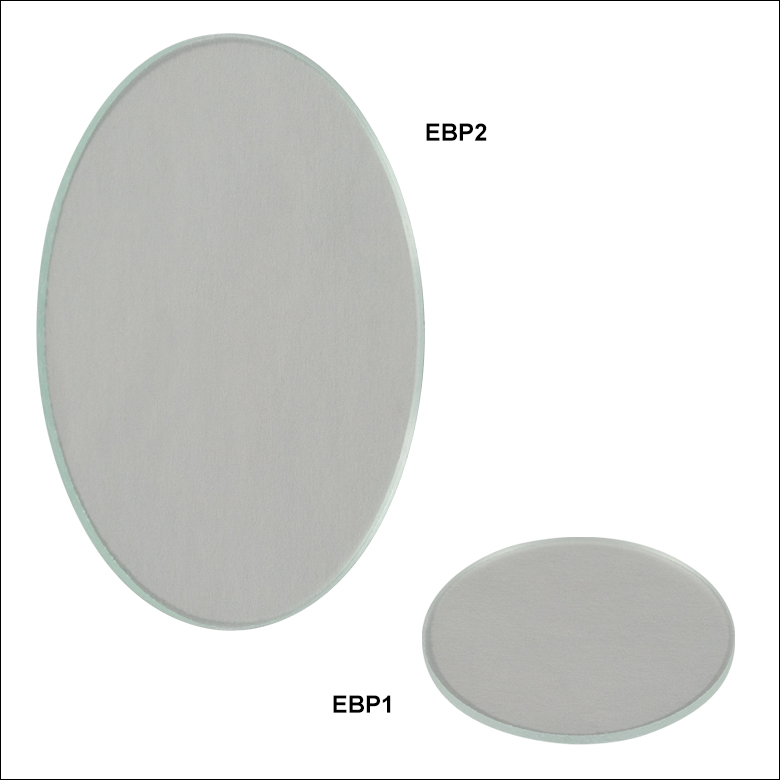

Thorlabs' Economy Beamsplitters, which have an exposed oxide coating on one side and are uncoated on the other side, are designed to have either a 50:50 or 30:70 splitting ratio in the visible spectral range (450 - 650 nm) when used with unpolarized light incident at 45° and oriented such that the coated surface faces the source. Please note that the Fresnel reflections from the uncoated back surface of these economy beamsplitters can lead to interference effects in the reflected beam. For applications sensitive to these effects, consider using a cube beamsplitter.

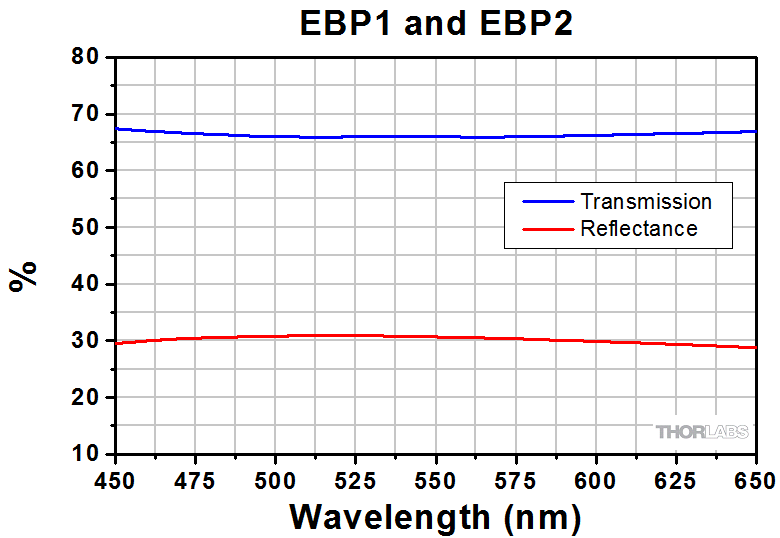

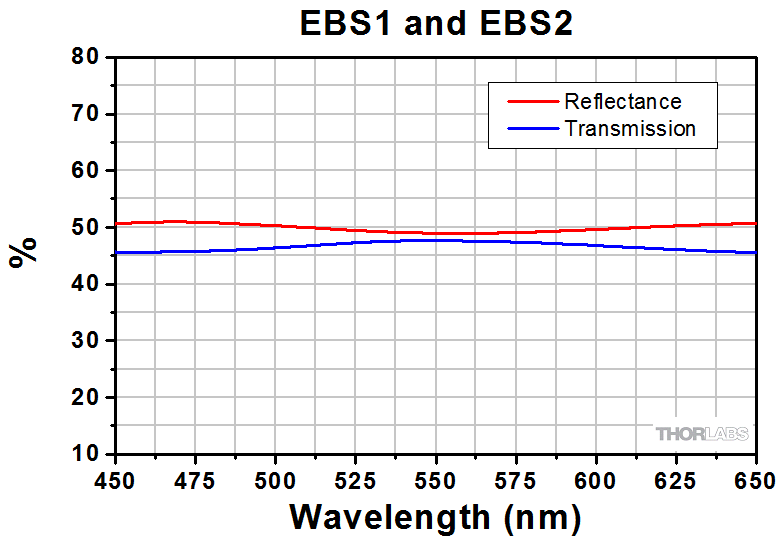

The graphs below shows reflectivity and transmission data for these Economy Visible Beamsplitters in the specified wavelength range. Extended plots showing reflectivity in the 400 - 2300 nm spectral range are available on the Graphs tab.

Because these beamsplitters are just 1 mm thick, significant stress results if they are placed into optic mounts that use setscrews. Our Optic Spacers provide a wide, rigid surface against which the setscrew can be tightened without causing damage to the optic.

Item #	EBS1	EBP1	EBS2	EBP2
Substrate	Soda Lime Glass
Diameter	1" (25.4 mm)		2" (50.8 mm)
Diameter Tolerance	+0.0/-0.25 mm		+0.0/-0.5 mm
Thickness (Nominal)	1 mm
Splitter Ratio	50:50	30:70	50:50	30:70
Splitter Ratio Tolerance for 450 - 650 nm (AOI = 45°)	Transmittance: 50% ± 10% Reflectance: 50% ± 10%	Transmittance: 70% ± 10% Reflectance: 30% ± 10%	Transmittance: 50% ± 10% Reflectance: 50% ± 10%	Transmittance: 70% ± 10% Reflectance: 30% ± 10%
Surface Quality	80-50 Scratch-Dig as per MIL-013830A
Clear Aperture	>90% of Diameter
Temperature Range	-50 to 80 °C

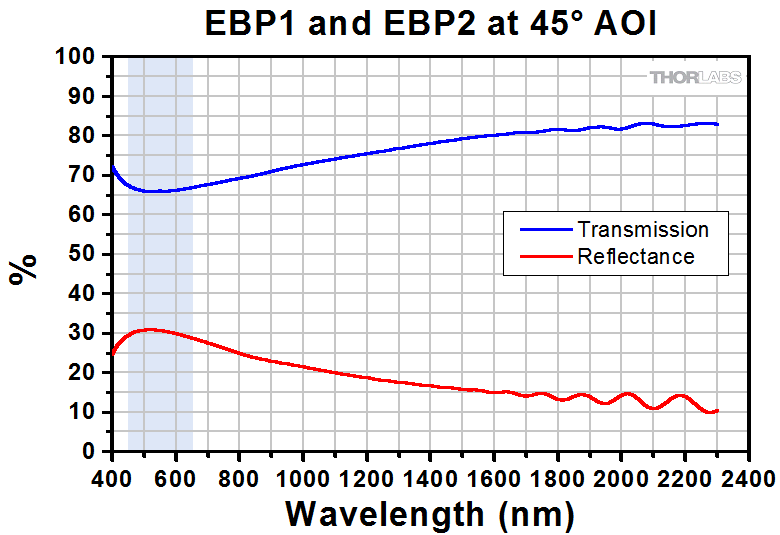

45° AOI

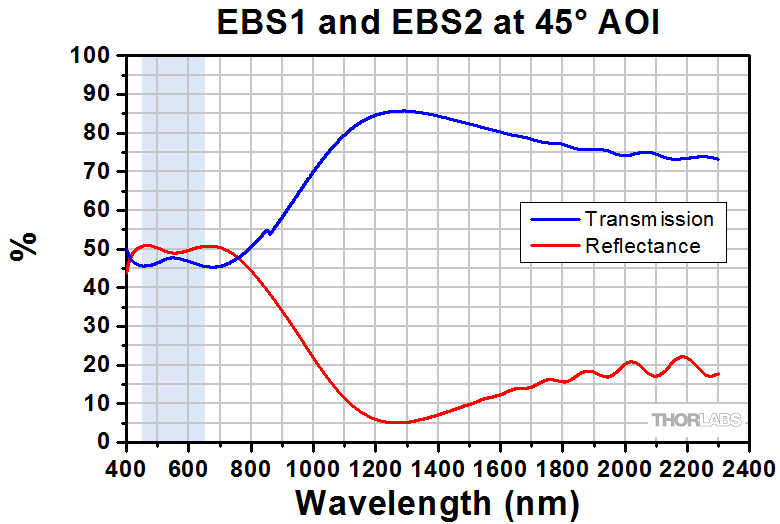

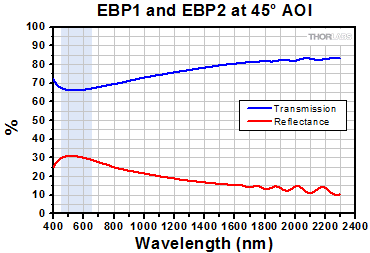

The highlighted regions represent the specified wavelength range (450 - 650 nm) of these Economy Visible Beamsplitters. The transmission and reflection outside of this region may vary for each coating run.

EBS Plot
Click to Enlarge
Click Here for Raw Data

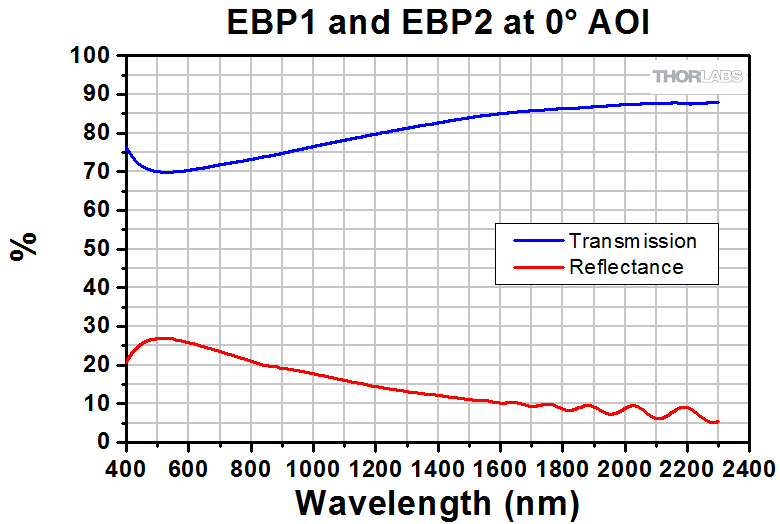

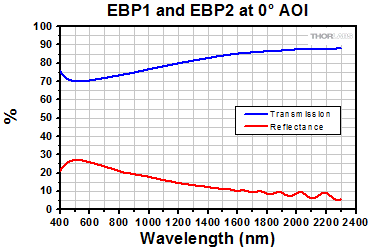

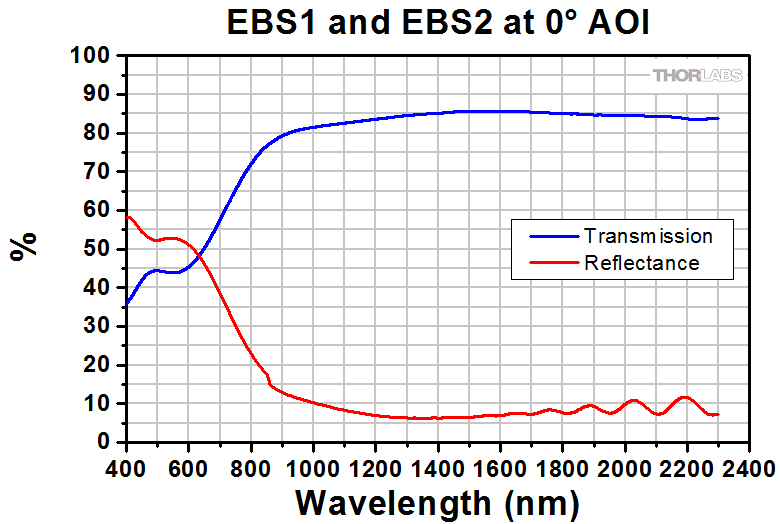

0° AOI

These Beamsplitters were designed for performance at 45° AOI. The data shown below is for informational purposes only.

EBP Plot
Click to Enlarge
Click Here for Raw Data

EBS Plot
Click to Enlarge
Click Here for Raw Data

Beamsplitter Selection Guide

Thorlabs' portfolio contains many different kinds of beamsplitters, which can split beams by intensity or by polarization. We offer plate and cube beamsplitters, though other form factors exist, including pellicle and birefringent crystal. For an overview of the different types and a comparison of their features and applications, please see our overview. Many of our beamsplitters come in premounted or unmounted variants. Below is a complete listing of our beamsplitter offerings. To explore the available types, wavelength ranges, splitting/extinction ratios, transmission, and available sizes for each beamsplitter category, click More [+] in the appropriate row below.

Plate Beamsplitters

Non-Polarizing Plate Beamsplitters

Polarizing Plate Beamsplitters

45° AOI Unless Otherwise Noted
30 arcmin Wedge on Round Optics Only
Designed for use with P-polarized light.

Cube Beamsplitters

Non-Polarizing Cube Beamsplitters

Polarizing Cube and Polyhedron Beamsplitters

Pellicle Beamsplitters

Non-Polarizing Pellicle Beamsplitters

Crystal Beamsplitters

Polarizing Crystal Beamsplitters

Mounted in a protective box, unthreaded ring, or cylinder.
Available unmounted or mounted in a protective box or unthreaded cylinder.

Other

Other Beamsplitters
