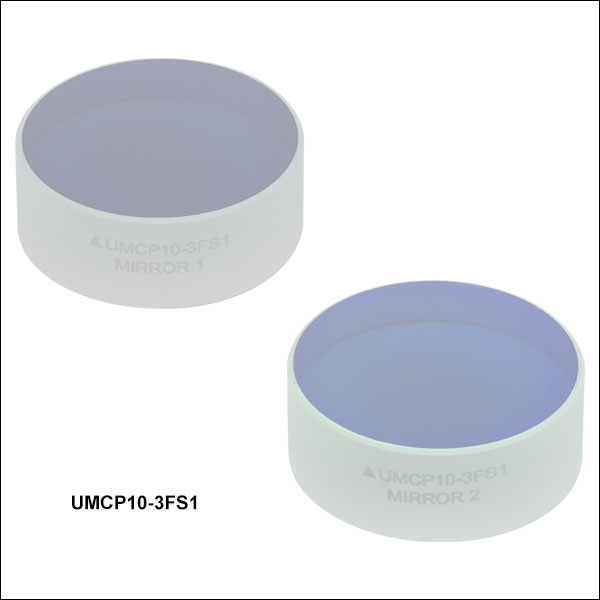

Products Home / Optical Elements / Optical Mirrors / Ultrafast Mirrors for Pulsed Lasers / Chirped MirrorsChirped Mirrors
- Corrects Dispersion Caused by Optical Elements
- Low AOI Allows Multiple Reflections Between Mirrors
- R > 99% for Either 650 - 1050 nm or 700 - 1000 nm
DCMP175
53.0 mm x 12.0 mm, Designed for Multiphoton Microscopy
UMC10-15FS
Ø1", Compensates for
1.5 mm of Fused Silica
UMC05-15FS
Ø1/2", Compensates for
1.5 mm of Fused Silica
Please Wait
Click to Enlarge

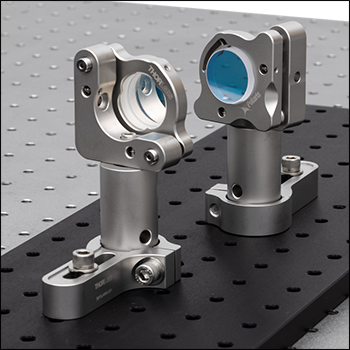

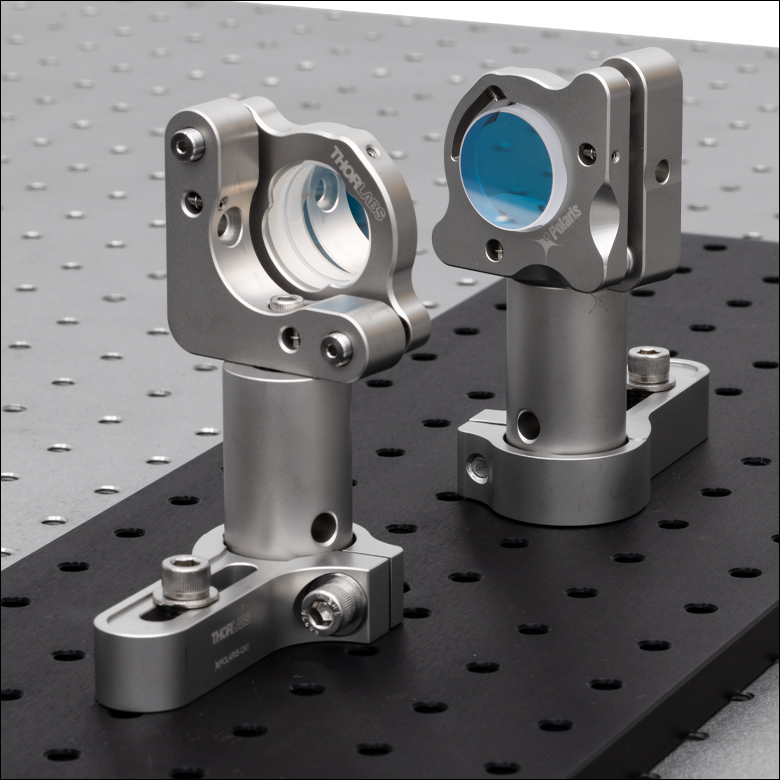

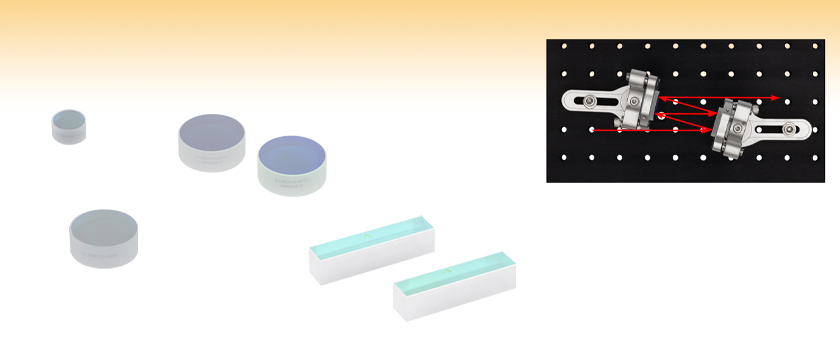

An example setup consisting of two UMC10-15FS chirped mirrors in POLARIS-C1G mirror mounts. These mirrors are designed with >99.5% reflectance and a low 10° AOI to support multiple reflections.
Features
- Chirped Mirrors Designed for Dispersion Compensation:
- UMCx-15FS: Each Reflection Compensates for Group Delay (GD) of 1.5 mm of Fused Silica
- DCMP175: Large GD Compensates for Long Path Lengths in Multiphoton Microscopy

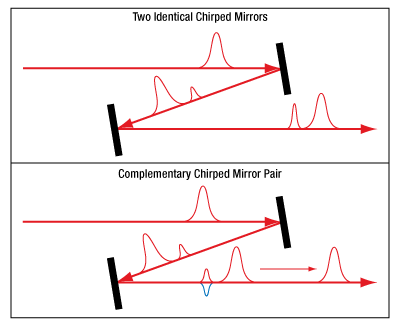

- High Reflectance and Low AOI Allow Multiple Reflections (See Drawing to the Right)
- Fused Silica Substrates
Thorlabs' Dispersion-Compensating Mirrors correct for the pulse broadening that occurs when ultrashort pulses propagate through an optical system. Ideal for use as dispersion management tools (e.g., precompensation), we offer them in two types: round mirrors that compensate for transmission through fused silica, the most common substrate for ultrafast optics; and rectangular mirrors designed for the long path lengths and optical substrates used in multiphoton microscopes.

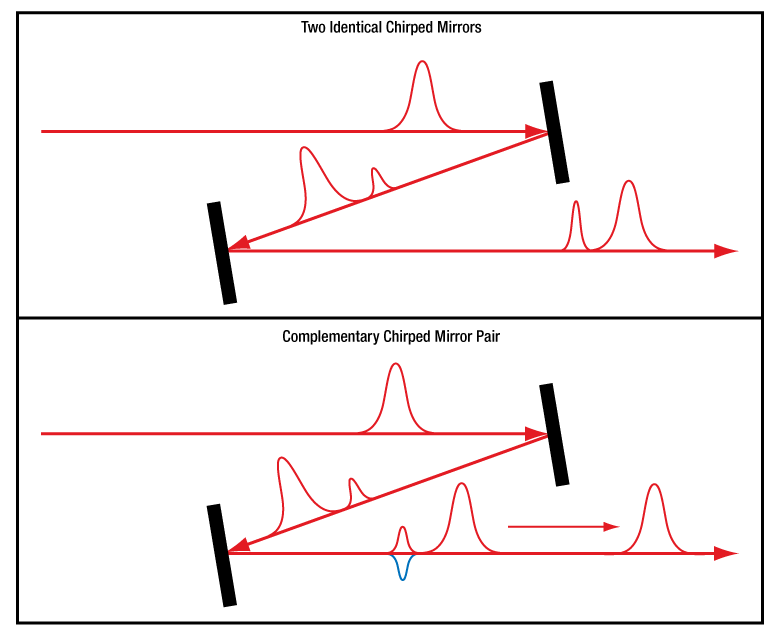

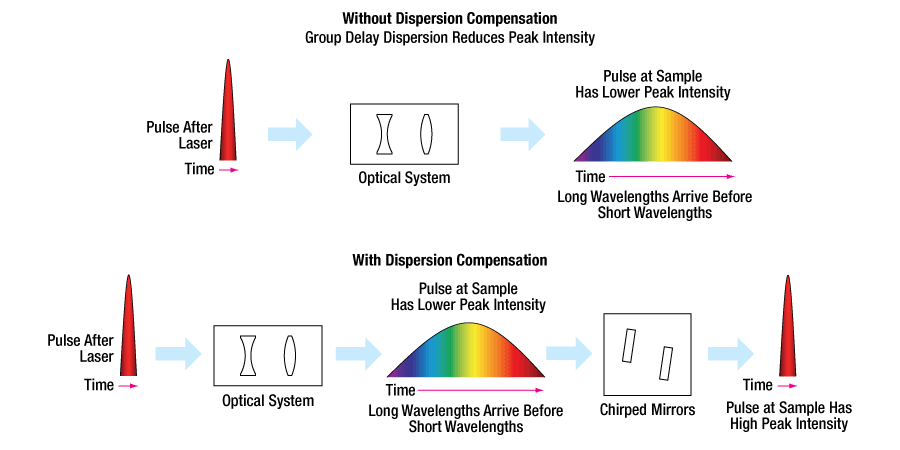

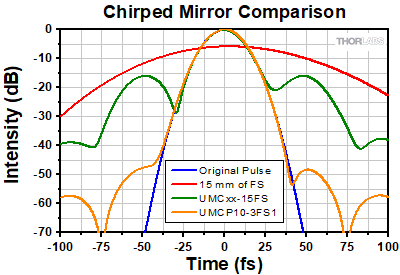

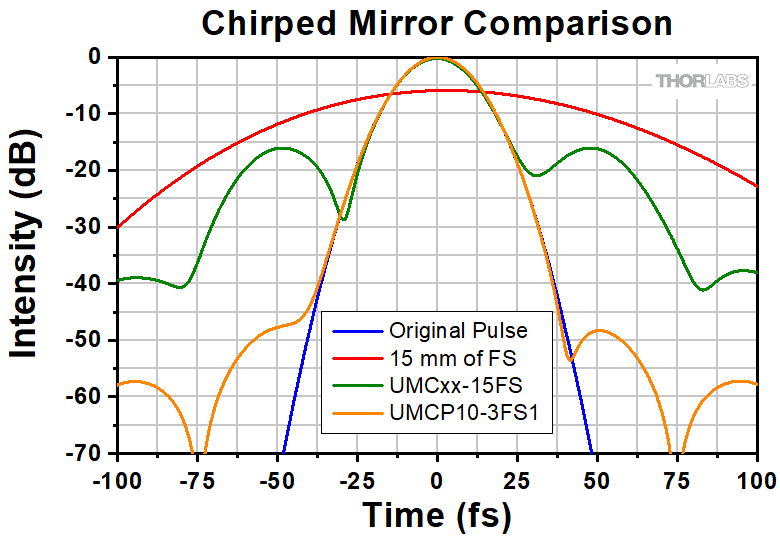

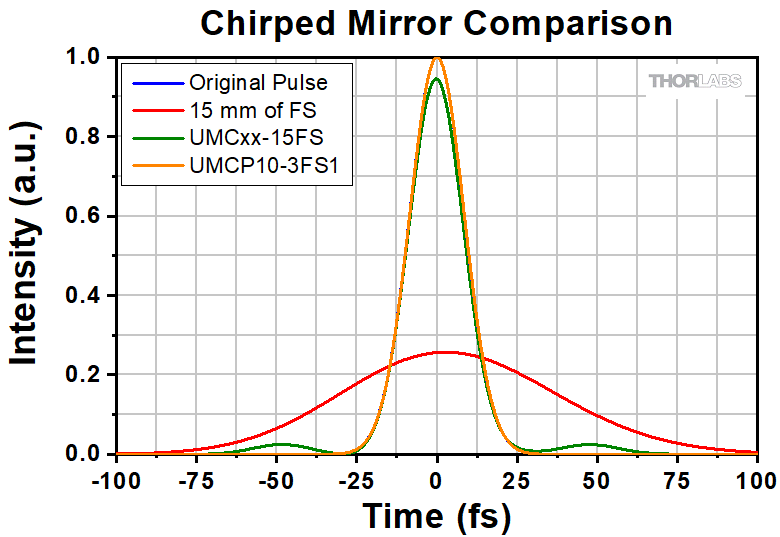

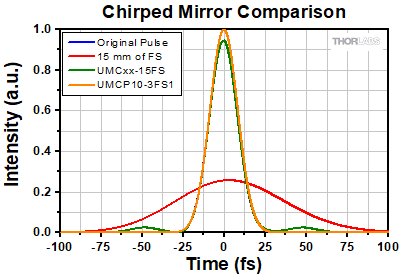

Since a femtosecond laser pulse consists of many different wavelengths, pulse broadening (a lengthening of the temporal intensity profile) will occur when the pulse passes through a dielectric medium, like glass. This broadening is caused by the wavelength dependence of the refractive index of the optical components through which the light travels. In typical glass, shorter wavelengths have higher indices of refraction than longer wavelengths, causing shorter wavelengths to travel slower. These mirrors are specifically designed so that longer wavelengths experience larger group delay dispersion than shorter wavelengths, allowing the shorter wavelengths to "catch up" to the longer wavelengths.
The coatings on these mirrors are deposited onto the surface using ion beam sputtering (IBS). This highly repeatable and controllable technique results in durable thin film coatings with high damage thresholds.
For Thorlabs' full selection of optics for ultrafast applications, please see the Ultrafast Optics tab.
| Specifications | |||
|---|---|---|---|
| Item # | UMC05-15FS | UMC10-15FS | DCMP175 |
| Wavelength Range | 650 - 1050 nm | 700 - 1000 nm | |
| Reflectance over Wavelength Rangea | Rabs > 99.5% over Wavelength Range | Ravg > 99% over Wavelength Range | |
| Group Delay Dispersion (GDD) per Reflection | -54 fs2 at 800 nm | -175 fs2 at 800 nm | |
| Size | Ø1/2" | Ø1" | 53.0 mm x 12.0 mm (2.09" x 0.47") |
| Diameter Tolerance | +0.00 / -0.10 mm | N/A | |
| Thickness | 6.35 mm (0.25") | 9.5 mm (0.37") | 12.0 mm (2.09") |
| Thickness Tolerance | ±0.10 mm | ±0.20 mm | - |
| Clear Aperture | >80% of Diameter | At Least 8 mm x 50 mm | |
| Angle of Incidence (AOI) | 10° | 8° | |
| Surface Flatnessb | λ/4 at 632.8 nm Over Clear Aperture | λ/10 Over Any Ø8 mm in the Clear Aperture | |
| Surface Quality | 15-5 Scratch-Dig | 10-5 Scratch-Dig | |
| Back Surface | Polished | - | |
| Laser-Induced Damage Threshold | 0.07 J/cm2 (800 nm, 43.2 fs FWHM, S-Pol, 10 000 Pulses)c | 0.10 J/cm2 (800 nm, 100 fs) | |
| Substrate | Fused Silica | ||
| Parallelism | ≤3 arcmin | - | |

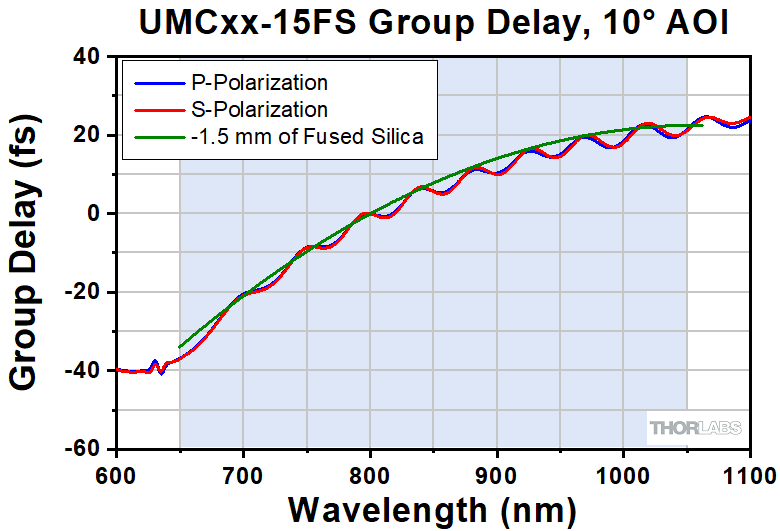

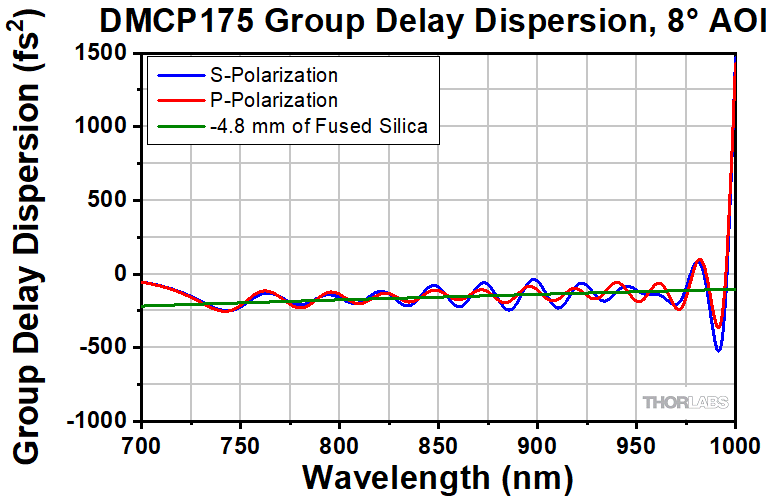

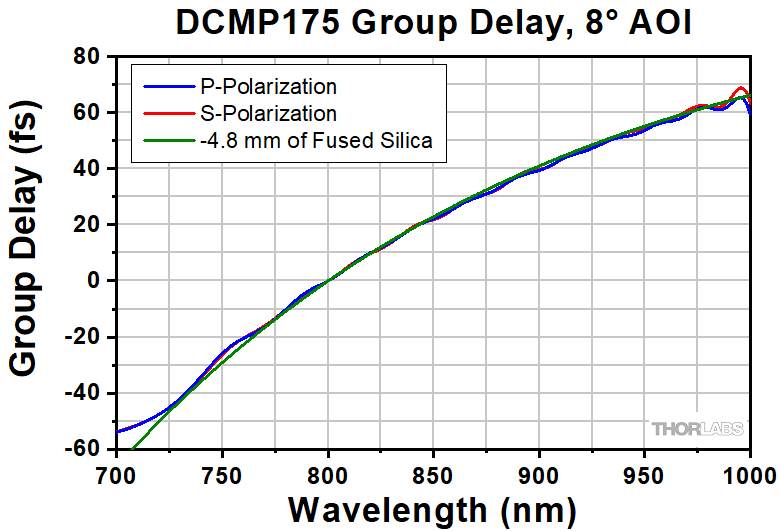

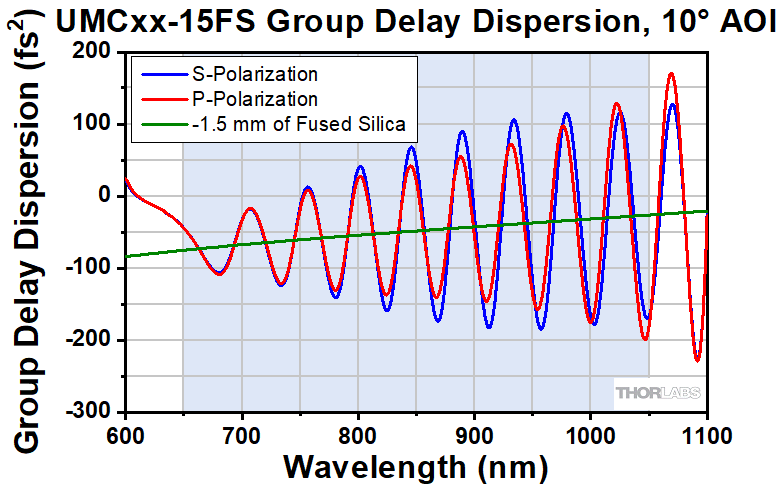

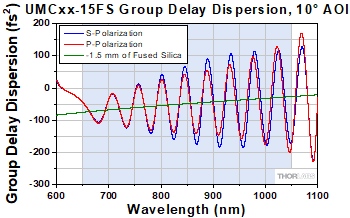

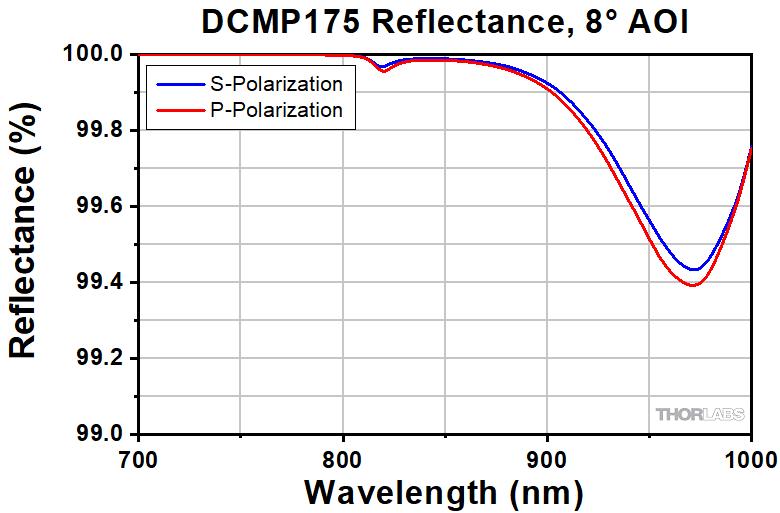

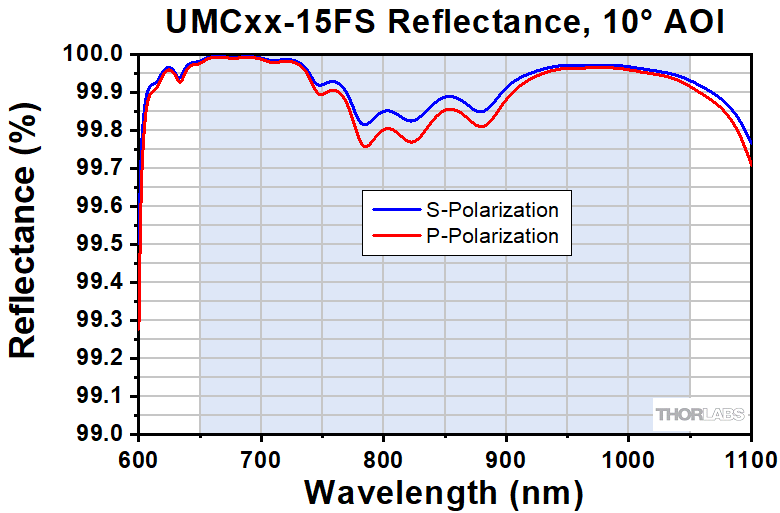

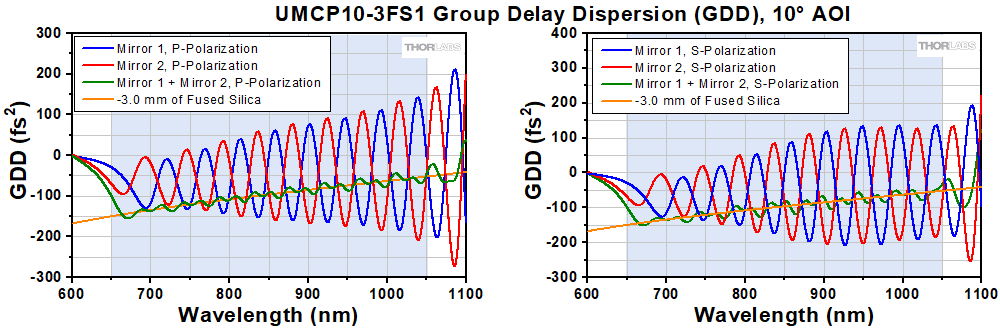

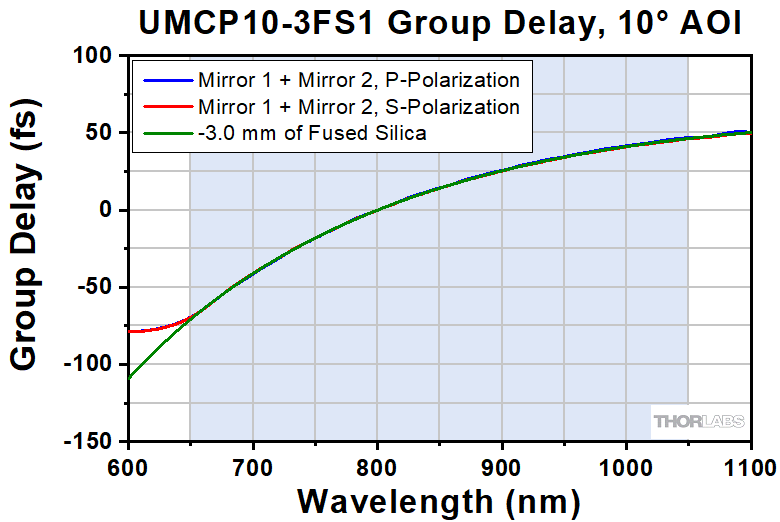

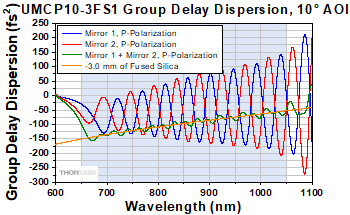

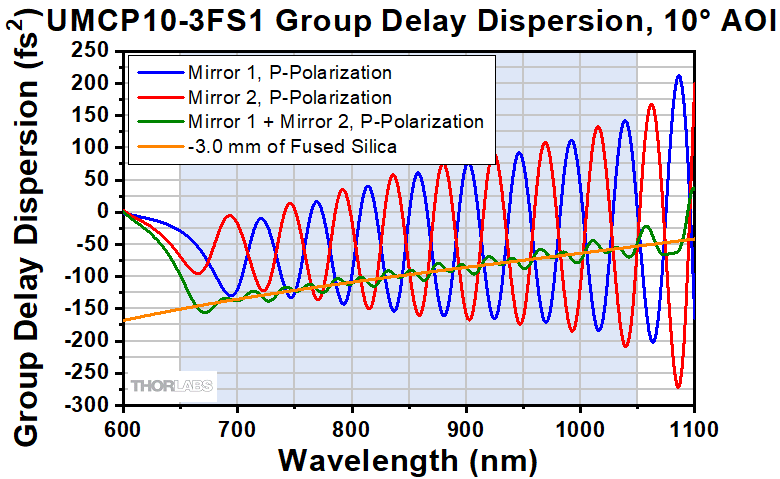

The plots below give the theoretically calculated reflectance and group delay (GD) of these mirrors and represent the designed performance. The actual performance will vary from lot to lot within the specifications given in the Specs tab. The highlighted regions represent the specified wavelength range of the mirrors.
