Liquid-Cooled Baseplates

Cool or Heat Work Surface via Internal Liquid Channels (0 to 60 °C)
Large Areas for Custom Mounting Holes & Threads
Unanodized Aluminum Construction

WCB12

12" x 12"
Liquid-Cooled
Baseplate

WCB6030/M

300 mm x 600 mm
Liquid-Cooled
Baseplate

Please Wait

Overview
Weights & Dims
Feedback
BB Selection Guide
Cooled BB Selection Guide

Table 1.2 Common Specifications
Baseplate Type	Imperial Plates	Metric Plates
Baseplate Specifications
Material	Unanodized Aluminum Plate
Thickness	0.5"	12.7 mm
Flatness	±0.006" over 1 ft²	±0.15 mm over 0.09 m²
Threaded Holes	Four 1/4"-20 Located at Corners - Inset 1"	Four M6 x 1.0 Located at Corners - Inset 25 mm
Counterbored Holes^a	Four 1/4" Located at Corners - Inset 2"	Four M6 Located at Corners - Inset 50 mm
Liquid Channel Specifications
Pressure Rating	80 psi
Operating Temperature	0 °C to 60 °C
Push-Fit Pipe Fitting Inner Diameter^b	1/4"	6 mm
Compatible Coolant^c	CDTX

A 5th counterbored mounting hole is located at the center of larger boards
(imperial boards 18" or wider, metric boards 450 mm or wider).
Our HPU6 polyurethane hose with 1/4" (6.35 mm) OD is compatible with both 1/4" and 6 mm ID fittings.
Please drain the baseplate completely when not using it for an extended period. CDTX coolant consists of ultrapure water and ethylene glycol with anti-corrosion agents and other inhibitors. Use of other liquids may promote corrosion to the internal surfaces of the baseplate and eventually lead to mechanical failure.

Click for Details

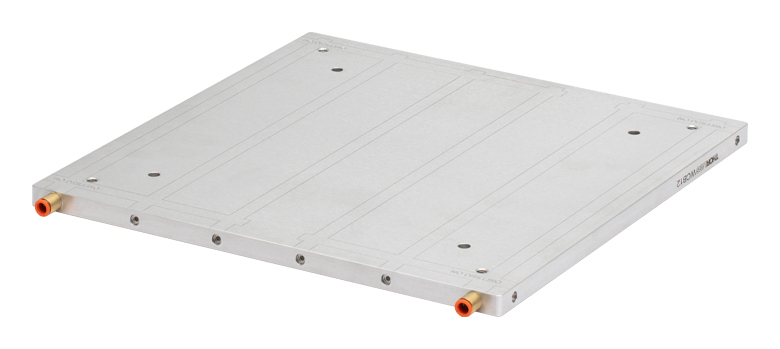

Figure 1.1 The underside of each baseplate is engraved with "no drilling" areas around the liquid channels.

Features

Liquid-Cooled Unanodized Aluminum Baseplates with Drilling Areas
- No-Drilling Areas Marked on Underside to Indicate Liquid Channels (See Figure 1.1)
Four or Five 1/4" (M6) Counterbores for Mounting to Work Surface (Larger Baseplates Have a Fifth Centrally-Located Counterbore)
Four 1/4"-20 (M6 x 1.0) Threaded Holes for Attaching Compatible MB Series Aluminum Breadboards
Plumbed to Accept Liquid Coolant
Additional Accessories Offered Below:
- Polyurethane Hoses
- In-Line Coupling Accessories

Thorlabs' Liquid-Cooled Baseplates are versions of our liquid-cooled aluminum breadboards that have large untapped areas for custom drilling and mounting applications. These baseplates are plumbed to accept a liquid coolant supply and are ideal for applications involving sensors, detectors, lasers, LEDs, or other apparatuses that may require temperature stabilization. The plates can be used in applications requiring either cooling or heating.

Each baseplate has two fittings that accept tubing with 1/4" (6 mm) outer diameter. These fittings allow for easy connection to a liquid coolant supply such as our LK220 liquid chiller. 16' (5 m) of polyurethane connection tubing is included with each baseplate and can be trimmed to suit the particular application. To do so, simply cut the tubing to the required length, trim the tubing edges flush, insert the tubing into the push-to-fit connectors, and connect the other end to your liquid supply/chiller unit. We offer separate polyurethane hoses with 11/64" inner diameter (ID) and 1/4" outer diameter (OD), or with 1/4" ID and 3/8" OD. Coupling inserts and bodies for both sizes are available for connecting between these hoses, including coupling between the two sizes.

Depending on the environmental temperature and humidity levels and the temperature of the plate, condensation can form on the baseplate surface. Please see Table 1.3 for guidelines on how this can be avoided.

Table 1.3 Operating Temperature and Condensation^a
Relative Air Humidity (RH%)	T_env - T_plate (ΔT °C)	Relative Air Humidity (RH%)	T_env - T_plate (ΔT °C)
95%	1 °C	55%	9 - 12 °C
90%	2 °C	50%	10 - 13 °C
85%	2 - 3 °C	45%	12 - 14 °C
80%	3 - 4 °C	40%	13 - 17 °C
75%	4 - 5 °C	35%	16 - 19 °C
70%	5 - 6 °C	30%	18 - 21 °C
65%	6 - 8 °C	25%	21 - 23 °C
60%	7 - 9 °C	20%	24 - 27 °C

Due to the humidity of the work area, and the difference between the operating temperature of the plate and the environmental temperature levels, there is a possibility that condensation may form on the baseplate surface. This table shows the approximate temperature difference between the baseplate and the environment that would cause condensation to form at a specific relative humidity.

Each baseplate features four or five counterbored mounting holes for mounting to an optical table or breadboard and four 1/4"-20 (M6 x 1.0) threaded holes for attaching compatible MB series aluminum breadboards. The four threaded holes are located at each corner of the baseplate, inset 1" (25.0 mm) from each edge. The four counterbored mounting holes are located at each corner of the baseplate, inset 2" (50.0 mm) from each edge. The larger baseplates (imperial plates 18" or wider and metric plates 450 mm or wider) have a fifth counterbored mounting hole at their center. Utilizing the center mounting hole increases the number of mounting options available, reduces stress at the corner mounting holes, and increases rigidity when heavy loads are placed on the boards. The mounting holes may be used to attach the baseplates to optical tables, breadboards, mounting posts, brackets, or a variety of other surfaces or mounts.

Other Breadboard Options
Thorlabs offers a variety of breadboards, including damped honeycomb optical breadboards for applications sensitive to vibrations, solid aluminum breadboards with 1" (25 mm) or 1/2" (12.7 mm) hole spacings, high-density optical breadboards compatible with our mini-series optomechanics, and liquid-cooled breadboards. Please see the BB Selection Guide tab for our full range of breadboards.

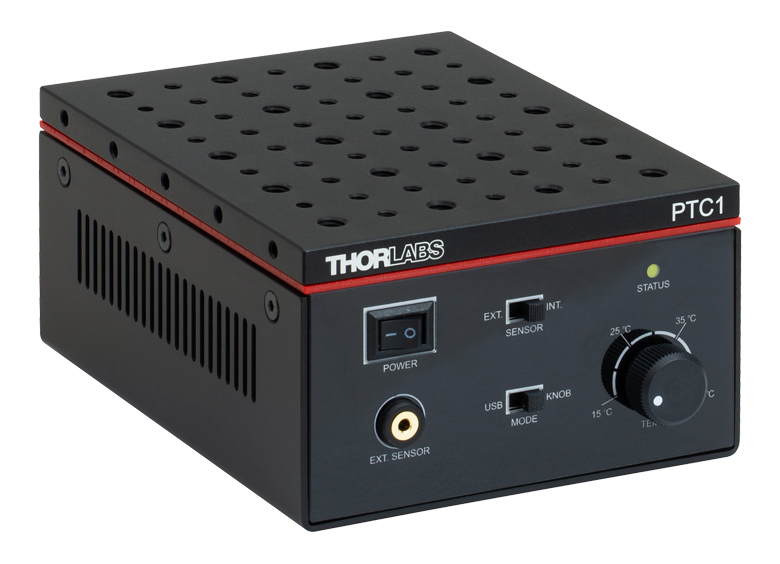

For other cooled breadboard options, including temperature-controlled mini-series breadboards with internal thermoelectric cooling, see the Cooled BB Selection Guide tab.

Optical Breadboard Enclosures are available to protect sensitive equipment from dust, stray light, acoustic noise, and thermal variations. Enclosures are offered completely sealed or with sliding door access.

Item #	Dimensions (L x W x H)	Unpackaged		Packaged Shipping
Item #	Dimensions (L x W x H)	Mass (kg)	Weight (lbs)	Mass (kg)^a	Weight (lbs)^a
Imperial
WCB6	6" x 6" x 0.5"	0.7	1.5	1.2	2.7
WCB12	12" x 12" x 0.5"	3.0	6.6	4.3	9.4
WCB1218	12" x 18" x 0.5"	4.4	9.7	5.1	11.3
WCB2412	12" x 24" x 0.5"	6	13.2	7.3	16.0

These weights are approximate and are subject to change. The information is only to be used as a guideline.

Item #	Dimensions (L x W x H)	Unpackaged		Packaged Shipping
Item #	Dimensions (L x W x H)	Mass (kg)	Weight (lbs)	Mass (kg)^a	Weight (lbs)^a
Metric
WCB1515/M	150 mm x 150 mm x 12.7 mm	0.7	1.5	1.2	2.7
WCB3030/M	300 mm x 300 mm x 12.7 mm	2.9	6.4	4.2	9.2
WCB3045/M	300 mm x 450 mm x 12.7 mm	4.3	9.5	5.0	11.0
WCB6030/M	300 mm x 600 mm x 12.7 mm	5.8	12.8	7.1	15.5

These weights are approximate and are subject to change. The information is only to be used as a guideline.

Posted Comments:
No Comments Posted

Breadboards	Nexus, Optimized Damping	Intrinsically Damped	Aluminum Honeycomb	Stainless Steel	Solid Aluminum
Construction
Breadboard Thickness	60 mm (2.4") 110 mm (4.3")	58 mm (2.28")	25 mm (0.98") 55 mm (2.2")	12.7 mm (0.5")	7.0 mm (0.28") 9.5 mm (0.375") 12.7 mm (0.5") 19.05 mm (0.75")
Working Surface	4003 Grade Stainless Steel or 304L Grade Non-Magnetic Steel Top Plate	4003 Grade Stainless Steel Top Plate	Aluminum	416 Grade Stainless Steel	Solid Aluminum Anodized or Unanodized
Top Skin	5 mm (0.20")	5 mm (0.20")	6 mm (0.24")	N/A	N/A
Bottom Skin	5 mm (0.20")	3 mm (0.12")	3 mm (0.12")	N/A	N/A
Core Design	High-Density Plated Steel Honeycomb, 0.26 mm Thick		High-Density Plated Aluminum Honeycomb	N/A	N/A
Side Panels	Rigid Steel Box Section	Unplasticized Polyvinyl Chloride (uPVC)	Black Laminated Aluminum Sides	N/A	N/A
Ferromagnetism	Magnetic or Non-Magnetic Options	Magnetic	Non-Magnetic	Magnetic	Non-Magnetic
Sealed Holes	Sealed (25 mm Depth) or Non-Sealed Options	Non-Sealed		N/A	N/A
Thread Options	1/4"-20 (M6) Tapped Holes	1/4"-20 (M6) Tapped Holes		1/4"-20 (M6) Tapped Holes	4-40 (M3), 8-32 (M4) and 1/4"-20 (M6), or 1/4"-20 (M6) Tapped Holes
Spacing	1" (25 mm) Centers	1" (25 mm) Centers		1" (25 mm) Centers	0.4" (10 mm) Centers, 0.5" (12.5 mm) Centers, or 1" (25 mm) Centers
Distance from Edge to First Holes	0.5" (12.5 mm) on all Sides		0.5" (12.5 mm) or 1.0" (25 mm) on all Sides	0.5" (12.5 mm) on all Sides	0.4" (10 mm) on all Sides or 0.5" (12.5 mm) on all Sides
Performance^a
Damping				N/A	N/A
Stiffness	60 mm (2.4") Thick	58 mm (2.28") Thick	25 mm (0.98") Thick	12.7 mm (0.5") Thick	7.0 mm (0.28") Thick
Stiffness	110 mm (4.3") Thick	58 mm (2.28") Thick	55 mm (2.2") Thick	12.7 mm (0.5") Thick	19.05 mm (0.75") Thick

The damping and stiffness performance shown here is qualitative and does not relate to exact specifications of each breadboard.

Optical Breadboard Selection Guides

Table 10A and Table 10B list every size offered for our honeycomb, solid aluminum, and acrylic breadboards. Simply locate the specific width and length needed and then select the type of breadboard. Expand each table by clicking the More [+] button within the header.

Thorlabs also offers several unique breadboard solutions. For applications requiring temperature control, we offer aluminum liquid-cooled breadboards and baseplates in several sizes, in addition to a temperature-controlled mini-series breadboard for small-scale applications. Our anodized aluminum large-area translation stages and rotating breadboards offer hand-operated positioning control, while our manual and motorized translating mounting platforms are ideal for use in microscopy applications.

Table 10A Imperial Optical Breadboard Size Options
Width	Length	Honeycomb					Stainless Steel	Solid Aluminum^a
Width	Length	Nexus (60 mm Thick)^b	Nexus (110 mm Thick)^b	Intrinsically Damped (58 mm Thick)	Aluminum (25 mm Thick)	Aluminum (55 mm Thick)	Stainless Steel	Standard	Double Density	High Density

Solid aluminum breadboards are offered with four different thicknesses: 0.5" (Item # prefix MB), 0.75" (Item # prefix MBH), 3/8" (Item # prefix MS), or 0.28" (Item # prefix MS). Select sizes are also available without an anodized coating (Item #s ending with U).
Item Number Suffix:

F, A, B, or G: Non-Sealed Mounting Holes
T, L, U, or N: Sealed Mounting Holes
FN or AN: Non-Magnetic Mounting Holes
Y or Z: No Mounting Holes
S: Stainless Steel

Tapped Hole Pattern Aligned at 45°
Build-to-Order
Includes a T-Slot in Side Panels for Compatibility with 25 mm Rail Accessories
This product has an access aperture.

Table 10B Metric Optical Breadboard Size Options
Width	Length	Honeycomb					Stainless Steel	Solid Aluminum^a
Width	Length	Nexus (60 mm Thick)^b	Nexus (110 mm Thick)^b	Intrinsically Damped (58 mm Thick)	Aluminum (25 mm Thick)	Aluminum (55 mm Thick)	Stainless Steel	Standard	Double Density	High Density

50 mm	75 mm	-	-	-	-	-	-	-	-	MSB5075/M
75 mm	100 mm	-	-	-	-	-	-	-	-	MSB7510/M
75 mm	150 mm	-	-	-	-	-	-	-	-	MSB7515/M
100 mm	100 mm	-	-	-	-	-	MB10S/M	-	-	-
100 mm	150 mm	-	-	-	-	-	MB1015S/M	MB1015/M MB1015U/M	M45B1015/M^c	MSB1015/M
100 mm	300 mm	-	-	-	-	-	-	MB1030/M	-	-
100 mm	600 mm	-	-	-	-	-	-	-	MB1060/M	-
100 mm	900 mm	-	-	-	-	-	-	-	MB1090/M	-
Ø149 mm		-	-	-	-	-	-	-	MBR150U/M	-
Ø150 mm		-	-	-	-	-	-	-	MBR150/M	-
150 mm	150 mm	-	-	-	-	-	MB15S/M	MB1515/M MB1515U/M	M45B1515/M^c	MBY1515/M MSB15/M
150 mm	300 mm	-	-	-	-	-	-	MB1530F/M	MB1530/M M45B1530/M^c	-
150 mm	450 mm	-	-	-	-	-	-	MB1545/M	-	-
150 mm	600 mm	-	-	-	-	-	-	MB1560/M	-	-
150 mm	900 mm	-	-	-	-	-	-	MB1590/M	-	-
150 mm	1200 mm	-	-	-	-	-	-	MB15120/M	-	-
180 mm	230 mm	-	-	-	-	-	-	-	-	MSB1823/M MSBU1823/M
200 mm	200 mm	-	-	-	-	-	-	MB2020/M MB2020U/M	-	-
200 mm	250 mm	-	-	-	-	-	-	MB2025/M	-	-
200 mm	600 mm	-	-	-	-	-	-	-	MB2060/M	-
200 mm	900 mm	-	-	-	-	-	-	-	MB2090/M	-
250 mm	300 mm	-	-	-	-	-	-	MB2530/M MB2530U/M	-	-
Ø300 mm		-	-	-	-	-	-	-	MBR300/M MBR300U/M	-
300 mm	300 mm	B3030A^d B3030L^d	-	-	PBG3030A^e	-	-	MB3030/M MB3030U/M	MB3030D/M	MBY3030/M MSB30/M MS12B/M
300 mm	450 mm	B3045A^d B3045L^d	-	B3045AX	PBG3045A^e	-	-	MB3045/M MB3045A/M^f MB3045U/M	-	MBY3045/M MSB3045/M
300 mm	600 mm	B3060A^d B3060L	-	B3060AX^d	PBG3060A	PBG52502^d	-	MB3060/M MB3060U/M	-	-
300 mm	900 mm	B3090A^d B3090L^d	-	-	PBG3090A^e	PBG52503^d	-	MB3090/M	-	-
300 mm	1200 mm	-	-	-	-	-	-	MB30120/M	-	-
350 mm	1150 mm	-	-	-	-	-	-	MB35115/M	-	-
350 mm	1425 mm	-	-	-	-	-	-	MB35142/M	-	-
450 mm	450 mm	B4545A^d B4545L^d	-	-	PBG4545A	-	-	MB4545/M	-	-
450 mm	600 mm	B4560A^d B4560L^d	-	B4560AX^d	PBG4560A^e	PBG52522^d	-	MB4560/M MB4560A/M^f MB4560U/M	-	-
450 mm	750 mm	-	-	-	-	-	-	MB4575/M	-	-
450 mm	900 mm	-	-	-	-	-	-	MB4590/M	-	-
600 mm	600 mm	B6060A^d B6060L	-	B6060AX^d	PBG6060A^e	PBG52505^d	-	MB6060/M	-
600 mm	900 mm	B6090A B6090L B6090AN^d B6090Z	B6090B^d B6090N^d	B6090AX	PBG6090A^e	PBG52506^d	-	MB6090/M	-	-
600 mm	1200 mm	B60120A B60120L	B60120B^d B60120N^d	B60120AX	PBG60120A^e	-	-	MB60120/M	-	-
600 mm	1500 mm	-	B60150B^d B60150N^d	-	-	PBG52508^d	-	-	-	-
750 mm	750 mm	B7575A B7575L	-	-	-	-	-	MB7575/M	-	-
750 mm	900 mm	B7590A B7590L B7590AN^d B7590Z	B7590B^d B7590N^d	B7590AX	PBG7590A^e	PBG52510^d	-	-	-	-
750 mm	1200 mm	B75120A B75120L B75120AN^d B75120Z	B75120B B75120N^d	B75120AX	PBG75120A^e	PBG52511	-	-	-	-
750 mm	1500 mm	-	B75150B B75150N	B75150AX	-	-	-	-	-	-
900 mm	900 mm	B9090A B9090L	B9090B^d B9090N^d	-	-	-	-	-	-	-
900 mm	1200 mm	B90120A B90120L B90120AN B90120Z	B90120B B90120N	B90120AX	PBG90120A^e	PBG52513	-	-	-	-
900 mm	1500 mm	-	B90150B B90150N	B90150AX	-	PBG52514	-	-	-	-
900 mm	1800 mm	-	B90180B B90180N	B90180AX	-	-	-	-	-	-
1200 mm	1500 mm	-	B120150B^d B120150N^d	-	-	-	-	-	-	-
1200 mm	1800 mm	-	B120180B B120180N^d	-	-	-	-	-	-	-

Solid aluminum breadboards are offered with four different thicknesses: 12.7 mm (Item # prefix MB), 19.05 mm (Item # prefix MBH), 9.5 mm (Item # prefix MS), or 7.0 mm (Item # prefix MS). Select sizes are also available without an anodized coating (Item #s ending with U).
Item Number Suffix:

F, A, B, or G: Non-Sealed Mounting Holes
T, L, U, or N: Sealed Mounting Holes
FN or AN: Non-Magnetic Mounting Holes
Y or Z: No Mounting Holes
S: Stainless Steel

Tapped Hole Pattern Aligned at 45°
Build-to-Order
Includes a T-Slot in Side Panels for Compatibility with 25 mm Rail Accessories
This product has an access aperture.

Cooled Breadboard Selection Guide
	Liquid-Cooled Breadboards	Liquid-Cooled Baseplates	Liquid-Cooled Cold Plates	Temperature-Controlled Mini-Series Breadboard
Representative Photos (Click to Enlarge)
Tapped Holes	1/4"-20 (Imperial) M6 (Metric)	1/4"-20 (Imperial) M6 (Metric)	1/4"-20, 8-32, 6-32, and 4-40 (Imperial) M6, M4, and 4-40 (Metric)	1/4"-20 and 8-32 (Imperial) M6 and M4 (Metric)
Available Sizes (L x W)	12" x 12" to 18" x 24" (Imperial) 300 mm x 300 mm to 450 mm x 600 mm (Metric)	6" x 6" to 12" x 24" (Imperial) 150 mm x 150 mm to 300 mm x 600 mm (Metric)	2" x 2" or 4" x 6" (Imperial) 50.8 mm x 50.8 mm or 101.6 mm x 152.4 mm (Metric)	4" x 5" x 2.46" (Imperial) 101.6 x 127.0 (Metric)
Height	1/2" (12.7 mm)	1/2" (12.7 mm)	0.87" (22 mm)	2.46" (62.5 mm)
Cooling	External Water or CDTX Coolant	CDTX Coolant^a	External Water or CDTX Coolant	Internal Thermoelectric Cooler with Temperature Settable from 5 °C to 45 °C
Operating Temperature Range	0 °C to 60 °C	0 °C to 60 °C	-15 °C to 60 °C	0 °C to 45 °C
Temperature Readout	None	None	TH10K Thermistor Readout via 2.5 mm Stereo Jack	Automatic Temperature Control with TH10K Thermistor Readout to Software GUI Via USB
Mounting Options	1/4" or 6 mm Counterbored Through Holes	1/4" or 6 mm Counterbored Through Holes	Threaded Mounting Holes for Posts on Bottom and Sides, and Side Slots for Clamping to Table	Threaded Mounting Holes for Posts on Bottom and Sides, and Rubber Feet on Bottom

Please drain the baseplate completely when not using it for an extended period. CDTX coolant consists of ultrapure water and ethylene glycol with anti-corrosion agents and other inhibitors. Use of other liquids may promote corrosion to the internal surfaces of the baseplate and eventually lead to mechanical failure.

Liquid-Cooled Baseplates

Zoom

Click to Enlarge

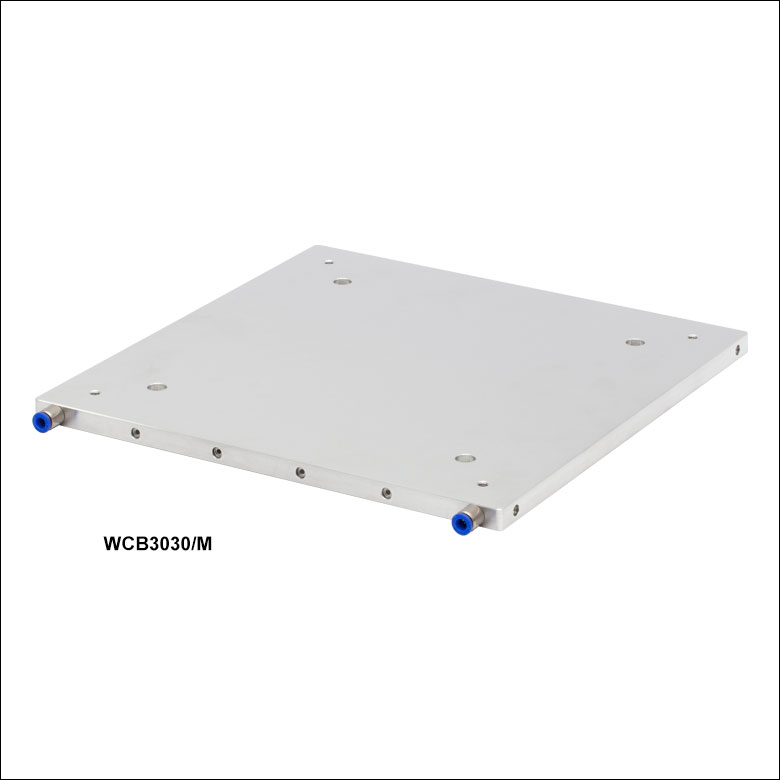

Figure G.1 WCB3030/M Baseplate

Baseplate Sizing: Length x Width x Thickness
No-Drilling Areas Marked on Underside to Indicated Liquid Channels
Boards Less than 18" (450 mm) Wide Feature Four Counterbored Mounting Holes
Boards 18" (450 mm) or Wider Feature Five Counterbored Mounting Holes
Four 1/4"-20 (M6 x 1.0) Threaded Holes at Corners for Attaching Compatible MB Series Aluminum Breadboards

Based on your currency / country selection, your order will ship from Newton, New Jersey

+1 Qty Docs Part Number - Imperial Price Available

WCB6	NEW!Customer Inspired! Liquid-Cooled Baseplate, 6" x 6" x 1/2", 1/4"-20 Taps

$270.00

Today

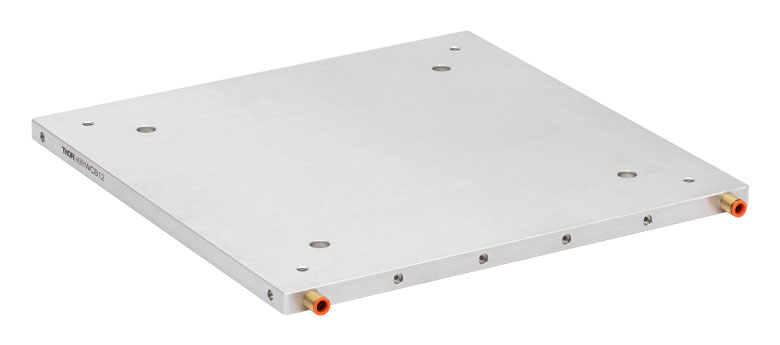

WCB12 NEW!Customer Inspired! Liquid-Cooled Baseplate, 12" x 12" x 1/2", 1/4"-20 Taps

$575.00

Today

WCB1218 NEW!Customer Inspired! Liquid-Cooled Baseplate, 12" x 18" x 1/2", 1/4"-20 Taps

$760.00

Today

WCB2412 NEW!Customer Inspired! Liquid-Cooled Baseplate, 12" x 24" x 1/2", 1/4"-20 Taps

$1,105.00

Today

+1 Qty Docs Part Number - Metric Price Available

WCB1515/M NEW!Customer Inspired! Liquid-Cooled Baseplate, 150 mm x 150 mm x 12.7 mm, M6 x 1.0 Taps

$270.00

Today

WCB3030/M NEW!Customer Inspired! Liquid-Cooled Baseplate, 300 mm x 300 mm x 12.7 mm, M6 x 1.0 Taps

$575.00

Today

WCB3045/M NEW!Customer Inspired! Liquid-Cooled Baseplate, 300 mm x 450 mm x 12.7 mm, M6 x 1.0 Taps

$760.00

Today

WCB6030/M NEW!Customer Inspired! Liquid-Cooled Baseplate, 300 mm x 600 mm x 12.7 mm, M6 x 1.0 Taps

$1,105.00

Today

Polyurethane Hoses

Zoom

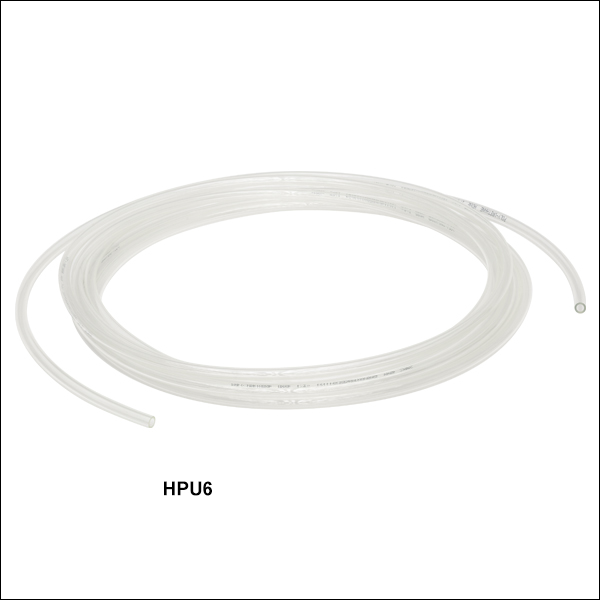

5 m Long Polyurethane Hoses
Two Hose Sizes Available:
- 1/4" Outer Diameter and 11/64" Inner Diameter
- 3/8" Outer Diameter and 1/4" Inner Diameter

These 5 m Long Polyurethane (PU) Hoses can withstand up to 120 psi of pressure and can be used in temperatures from -15 to 60 °C. The hoses can be trimmed to suit any application. To do so, simply cut the tubing to the required length, trim the tubing edges flush, insert the tubing into the connectors, and connect the other end to your coolant supply/chiller unit. These hoses are intended to be used alongside the in-line coupling accessories sold below. The inserts and bodies sold below can be used to convert from 1/4" ID to 11/64" ID. Note that our HPU6 hose with 1/4" (6.35 mm) OD is compatible with both 1/4" and 6 mm ID push-fit pipe fittings.

These hoses allow for easy connection to a water or coolant supply. Both hoses are compatible with our Liquid-Cooled Cold Plates. The HPU9 1/4" ID hose can directly connect to the liquid-cooled plates, while the fittings sold below can be used to adapt to the HPU6 11/64" ID hose. The HPU6 polyurethane hose is also directly compatible with our Liquid-Cooled Breadboards, Liquid-Cooled Baseplates, and Liquid-Cooled HHL Laser Mount.

In-Line Coupling Accessories

Zoom

Click to Enlarge

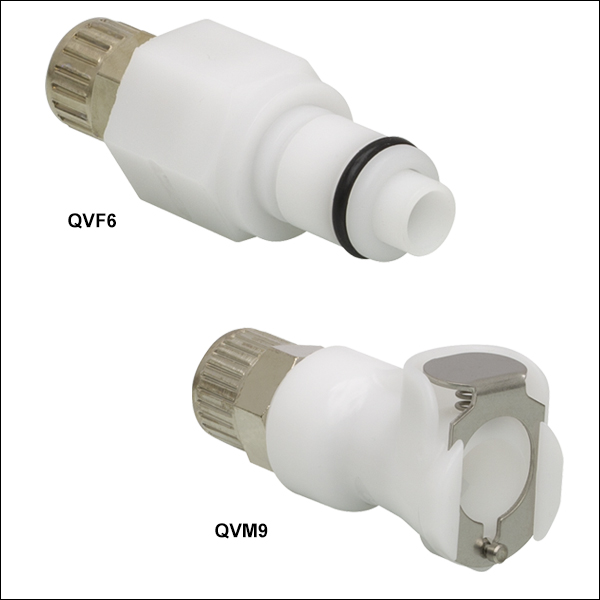

Figure 740B QVM6 with Nut Detached

Click to Enlarge

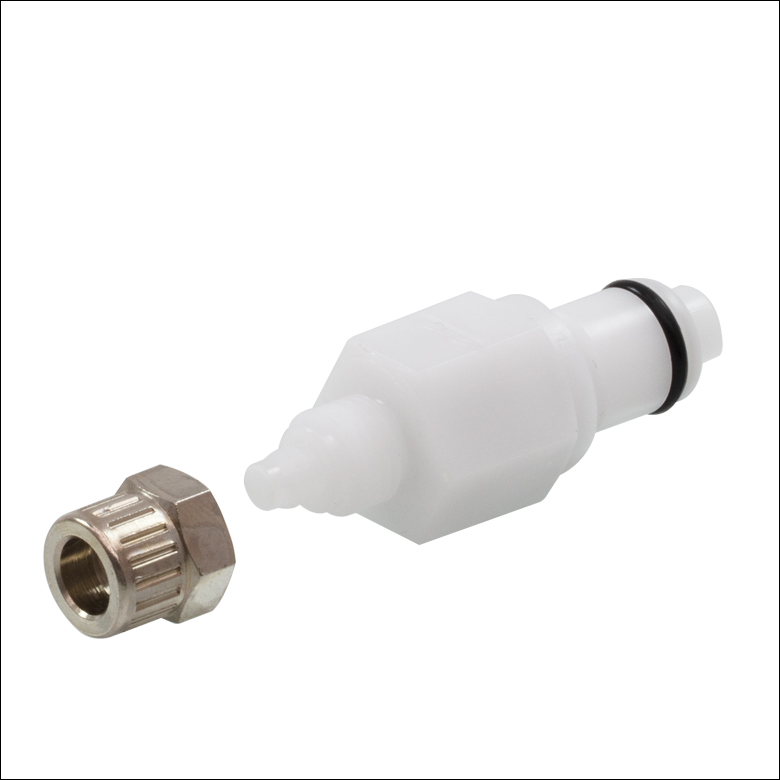

Figure 740A QVF6 with Nut Detached

RoHS Compliant Materials:
- Natural White Acetal
- Stainless Steel Valve Spring
- Barrel Nickel Plated Brass Nut
BUNA-N Seals

These Valved In-Line Coupling Inserts and Bodies can withstand pressures up to 120 psi, in temperatures from -40 to 82 °C (-40 to 180 °F). The inserts have male connection ports, while the bodies have female connectors with a self-lock structure for secure connection. Inserts and bodies are intended to be used in pairs, as any coupling insert can mate with any coupling body. The QVF6 coupling body and QVM6 coupling insert can support HPU6 tubing with a 11/64" inner diameter (ID) and 1/4" outer diameter (OD), while the QVF9 coupling insert and QVM9 coupling body can support HPU9 tubing with a 1/4" ID and 3/8" OD.

These coupling accessories are directly compatible with our Liquid-Cooled Cold Plates. Additionally, they can be used with the LK220 Liquid Chiller, Spatial Light Modulators, or our Liquid-Cooled HHL Laser Mount, which all come with compatible CPC^®valved quick-connect coupling inserts.

2"	3"	-	-	-	-	-	-	-	-	MSB23
3"	4"	-	-	-	-	-	-	-	-	MSB34
3"	6"	-	-	-	-	-	-	-	-	MSB36
4"	4"	-	-	-	-	-	MB4S	MB4U	-	-
4"	6"	-	-	-	-	-	MB46S	MB4	M45B4^c	MSB46
4"	12"	-	-	-	-	-	-	MB412	-	-
4"	24"	-	-	-	-	-	-	-	MB424	-
4"	36"	-	-	-	-	-	-	-	MB436	-
Ø5.87"		-	-	-	-	-	-	-	MBR6U	-
Ø6"		-	-	-	-	-	-		MBR6	-
6"	6"	-	-	-	-	-	MB6S	MB6 MB6U	M45B6^c	MBY6 MSB6
6"	12"	-	-	-	-	-	-	MB612F	MB612 M45B612^c	-
6"	18"	-	-	-	-	-	-	MB618	-	-
6"	24"	-	-	-	-	-	-	MB624	-	-
6"	36"	-	-	-	-	-	-	MB636	-	-
6"	48"	-	-	-	-	-	-	MB648	-	-
7.09"	9.06"	-	-	-	-	-	-	-	-	MSB1823 MSBU1823
8"	8"	-	-	-	-	-	-	MB8 MB8U	-	-
8"	10"	-	-	-	-	-	-	MB810 MB810U	-	-
8"	24"	-	-	-	-	-	-	-	MB824	-
8"	36"	-	-	-	-	-	-	-	MB836	-
10"	12"	-	-	-	-	-	-	MB1012 MB1012U	-	-
Ø12"		-	-	-	-	-	-	-	MBR12 MBR12U	-
12"	12"	B1212F B1212T^d	-	-	PBG1212F^e	-	-	MB12 MB12U	MB12D	MBY12 MS12B MSB12
12"	18"	B1218F B1218T	-	B1218FX	PBG1218F^e	-	-	MB1218 MB1218U MB1218A^f	-	MBY1218 MSB1218
12"	24"	B1224F B1224T^d	-	B1224FX	PBG1224F^e	PBG12102^d	-	MB1224 MB1224U	-	-
12"	36"	B1236F B1236T^d	-	-	PBG1236F^e	PBG12103^d	-	MB1236	-	-
12"	48"	-	-	-	-	-	-	MB1248	-	-
14"	45"	-	-	-	-	-	-	MB1445	-	-
14"	56"	-	-	-	-	-	-	MB1456	-	-
18"	18"	B1818F B1818T	-	-	PBG1818F^e	-	-	MB18	-	-
18"	24"	B1824F B1824T	-	B1824FX	PBG1824F^e	PBG12118	-	MB1824 MB1824U MB1824A^f	-	-
18"	30"	-	-	-	-	-	-	MB1830	-	-
18"	36"	-	-	-	-	-	-	MB1836	-	-
24"	24"	B2424F B2424T	-	B2424FX	PBG2424F^e	PBG12105	-	MB2424	-	-
24"	36"	B2436F B2436T B2436FN^d B2436Y	B2436G^d B2436U^d	B2436FX	PBG2436F^e	PBG12106	-	MB2436	-	-
24"	48"	B2448F B2448T	B2448G^d B2448U^d	B2448FX	PBG2448F^e	-	-	MB2448	-	-
24"	60"	-	B2460G^d B2460U^d	-	-	PBG12108^d	-	-	-	-
30"	30"	B3030F B3030T^d	-	-	-	-	-	MB30	-	-
30"	36"	B3036F B3036T B3036FN^d B3036Y	B3036G^d B3036U^d	B3036FX	PBG3036F^e	PBG12110	-	-	-	-
30"	48"	B3048F B3048T B3048FN^d B3048Y	B3048G^d B3048U^d	B3048FX	PBG3048F^e	PBG12111	-	-	-	-
30"	60"	-	B3060G B3060U^d	B3060FX	-	-	-	-	-	-
36"	36"	B3636F B3636T	B3636G^d B3636U^d	-	-	-	-	-	-	-
36"	48"	B3648F B3648T B3648FN^d B3648Y	B3648G B3648U	B3648FX	PBG3648F^e	PBG12113	-	-	-	-
36"	60"	-	B3660G B3660U	B3660FX	-	PBG12114	-	-	-	-
36"	72"	-	B3672G B3672U^d	B3672FX	-	-	-	-	-	-
48"	60"	-	B4860G^d B4860U^d	-	-	-	-	-	-	-
48"	72"	-	B4872G B4872U^d	-	-	-	-	-	-	-
